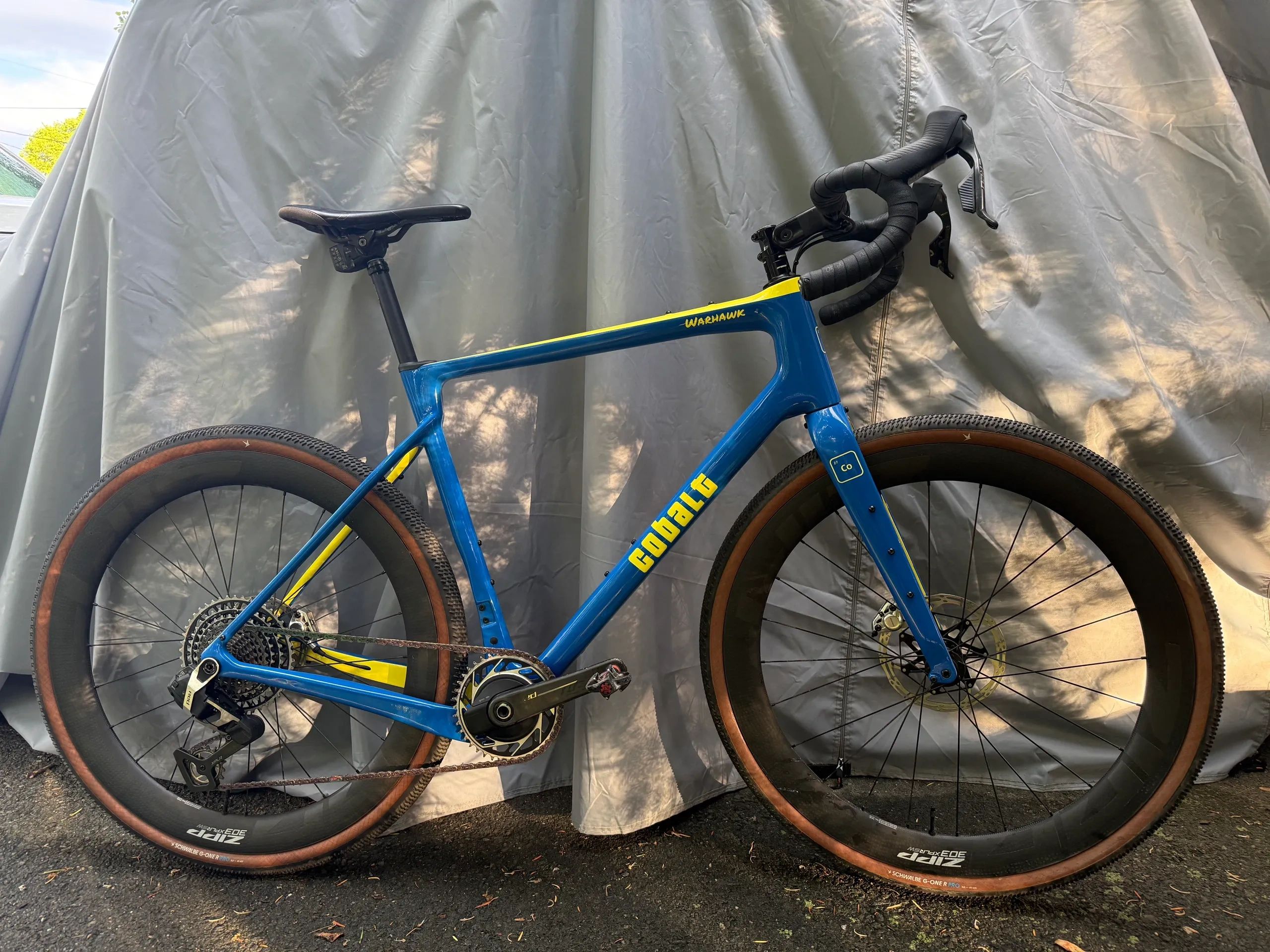

Warhawk Gravel

If you could have one bike, the Warhawk is it. Designed to tackle those epic days in the saddle, with 5 bottle mounts and room for 650x2.1” or 700x50 tires. Whether it’s bike packing, conquering your favorite gravel roads, or racing the DK200, the Warhawk is up to the challenge. Only 18-21 pounds for  a complete  bike.


Warhawk Featrures

Tire Clearance

Dropped Chainstay

Dropped Chainstay


Bigger tires and mud clearance are key. With room for 2.1" tires on a 650 wheel, you can also fit up to 1.9" tires (50mm) on a 700 wheel. While many riders are happy with 40-45mm tires, the Warhawk provides plenty of room for mud clearance whatever size you choose

Dropped Chainstay

Dropped Chainstay

Dropped Chainstay


To make room for wider cranks and improve stiffness, we've dropped the drive side chain stay and beefed up the area around the bottom bracket.

3 Bottle Mounts +

Dropped Chainstay

Versatile Carbon Fork


The Warhawk frame has three bottle mounts- two inside the front triangle and one under the down tube.  We  added a mount on the top tube to secure accessory bags and there are  fenders mounts on the front and rear of the frame

Versatile Carbon Fork

Full Internal Cable Routing

Versatile Carbon Fork


The Cobalt carbon fork comes with a 12x100 thru axle, flat mount brakes for 160mm rotor and three mounting bolts on either side to carry your stuff.  Fender mounts are also integrated into the fork. The steer tube is secured with a tapered headset and safety plug to ensure the integrity of the carbon steer tube.

Stiff & Light

Full Internal Cable Routing

Full Internal Cable Routing


100% Toray Carbon frames combined with a lay up that optimizes the stiff ultra high modulus carbon and tougher grades of carbon fiber in the right locations giving you a stiff, light, but compliant frame set.

Full Internal Cable Routing

Full Internal Cable Routing

Full Internal Cable Routing


Keeping the visible cables to a minimum gives the Warhawk the clean look we are all striving for and reduces the amount of dirt that gathers on external cable routing.

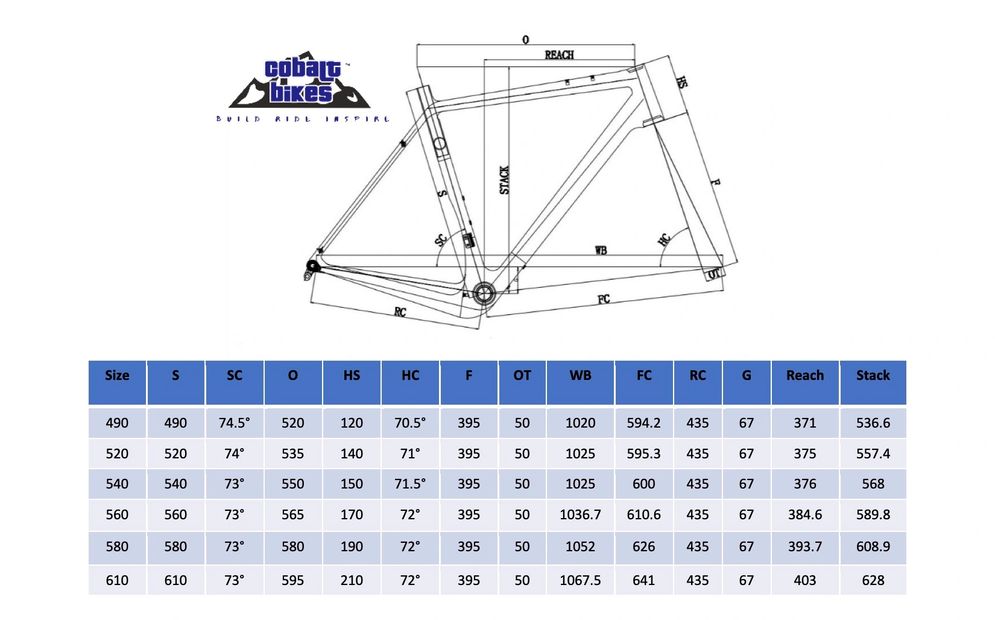

Warhawk GEOMETRY


The Warhawk is designed from the ground up to be a versatile gravel bike. With monster tires you have a drop bar MTB. With 40mm tires you have a fast, all day gravel racer.  The 27.2mm seat tube and seat post give you max flex to smooth out rough terrain. A threaded bottom bracket gives you creak-free riding.


WARHAWK GRAVEL SPECIFICATIONS

WARHAWK GRAVEL SPECIFICATIONS

Frame Material:

  • 100% Toray Carbon Fiber

 Sizes Avail:

  • 49   52   54   56  58   61

Weight :

  • Frame: 1210g
  • Fork: 470g

Seat post:

  • Seat post diameter: 27.2 MM
  • Seat post clamp size: 31.6 MM

Bottom Bracket: BSA Threaded 68

Brake: Flat mount Disc Brakes, 160mm Rotors

Headset: Tapered 1-1/8" - 1-1/2"

Axles:

  • Front:12x100mm
  • Rear:12x142mm

Max tire size:

  • 700C x 50mm
  • 650B x 2.1”

Max chainring:  52-36T  or 46T Single ring

Rack and fender mounts, 3 bottle mounts

Full internal cable, dropper post ready


Build Options

Warhawk Build Kits

Shimano Ultegra Disc Di2

Warhawk Build Kits


Just want a frame you can build yourself? Check out the Warhawk Frame Package. Includes frame, carbon fork, carbon seat post, headset, axles.

SRAM Force AXS

Shimano Ultegra Disc Di2

Warhawk Build Kits


SRAM RED eTap AXS™ allows riders to push boundaries without any distractions. This intuitive and high-performance electronic groupset works smarter to offer wider range, and more useful gear progression. Shifting is quiet, secure, and smooth whether on tarmac or gravel with the help of Orbit chain management technology. Option for mullet build with Force AXS shifters and Eagle AXS rear derailleur and cassette giving you a wide gear range.

Shimano Ultegra Disc Di2

Shimano Ultegra Disc Di2

Shimano Ultegra Disc Di2


Get Shimano's top selling electronic shifters and Hydraulic brakes. New ULTEGRA R8000 series is "pro-proven" as it is a direct trickle down from DURA-ACE groupset. As road bike component, the stress-free operation is one of the most important feature to lead all day riding comfort with braking and shifting.

Shimano GRX

Custom Build FAQs

Shimano Ultegra Disc Di2


Shimano GRX, with its gravel specific ergonomics, optimized gearing options, rugged reliability, and quiet and stable drivetrain. The first group set built specifically for gravel

Shimano 105

Custom Build FAQs

Custom Build FAQs


Shimano trickled down the technology and aesthetics of its Dura-Ace and Ultegra to the Shimano 105 R7000 group set. Top performance at a lower price

Custom Build FAQs

Custom Build FAQs

Custom Build FAQs


Questions about specific frame builds? See the FAQs page or contact us directly. Frame package and full builds are available


Contact Us

Custom build questions? Drop us a line!

Arlington, Virginia 22207, United State


Warhawk in Action Video
