2024 Marauder Specifications
Material:100% full toray carbon fiber
Size:XS S M L XL XXL
Bar-Stem sizes :80x400, 90x420, 90x440, 100x440
Weight :Frame: 1300 ±50g Fork:590g ±15g
Bottom Bracket:BSA-68mm
Brake:Flat mount
Headset size :1-1/2"* 1-1/2”ACR
Axles:F:12*100mm R:12*142mm
Seat post diameter: 27.2 MM
Max tire size:700C*50mm / 650B*2.1“(53.3mm)
Max chainring:52-36T / 46T
Rotor size :160/180 mm
Mold Technology:EPS molding
Fully internal cable routing rack and fender
Marauder Build Options
The Marauder All Road is available in gloss blue and matte grey. If you want to do something special jut for you, we also offer lots of custom painting options
The most popular build options are available or you can custom tailor your Marauder to suit your riding style and component preferences. Drop us a line and let us help you with your custom build.
Looking for a bike that covers all bases? Set yourself up with two wheelsets- one with cushy 40c tires for the gravel and another with smooth 28c tires for the road.
2021-23 Marauder Specifications
Material: 100% Full Toray Carbon Fiber T700/T800
Size: 49cm 52cm 54cm 56cm 58cm
Bottom Bracket: BSA Threaded
Frame:1050g
Fork: 430g
Head Tube: Tapered 1-1/8” to 1-1/2”
Seat post: 27.2mm
Max Tire: 700X42
Rear Spacing: 142x12mm Thru-axle
Fork spacing : 100x12mm Thru-axle
Brake Type: Flat Mount
Disc Rotor: Front and Rear 160mm
Full internal housing cable design
Marauder Build Options
The Marauder All Road is available in Black Matte and Matte Grey. If you want to do your own custom painting we also offer it in raw ready to paint (R2P).
The most popular build options are available or you can custom tailor your Marauder to suit your riding style and component preferences. Drop us a line and let us help you with your custom build.
Looking for a bike that covers all bases? Set yourself up with two wheelsets- one with cushy 40c tires for the gravel and another with smooth 28c tires for the road.

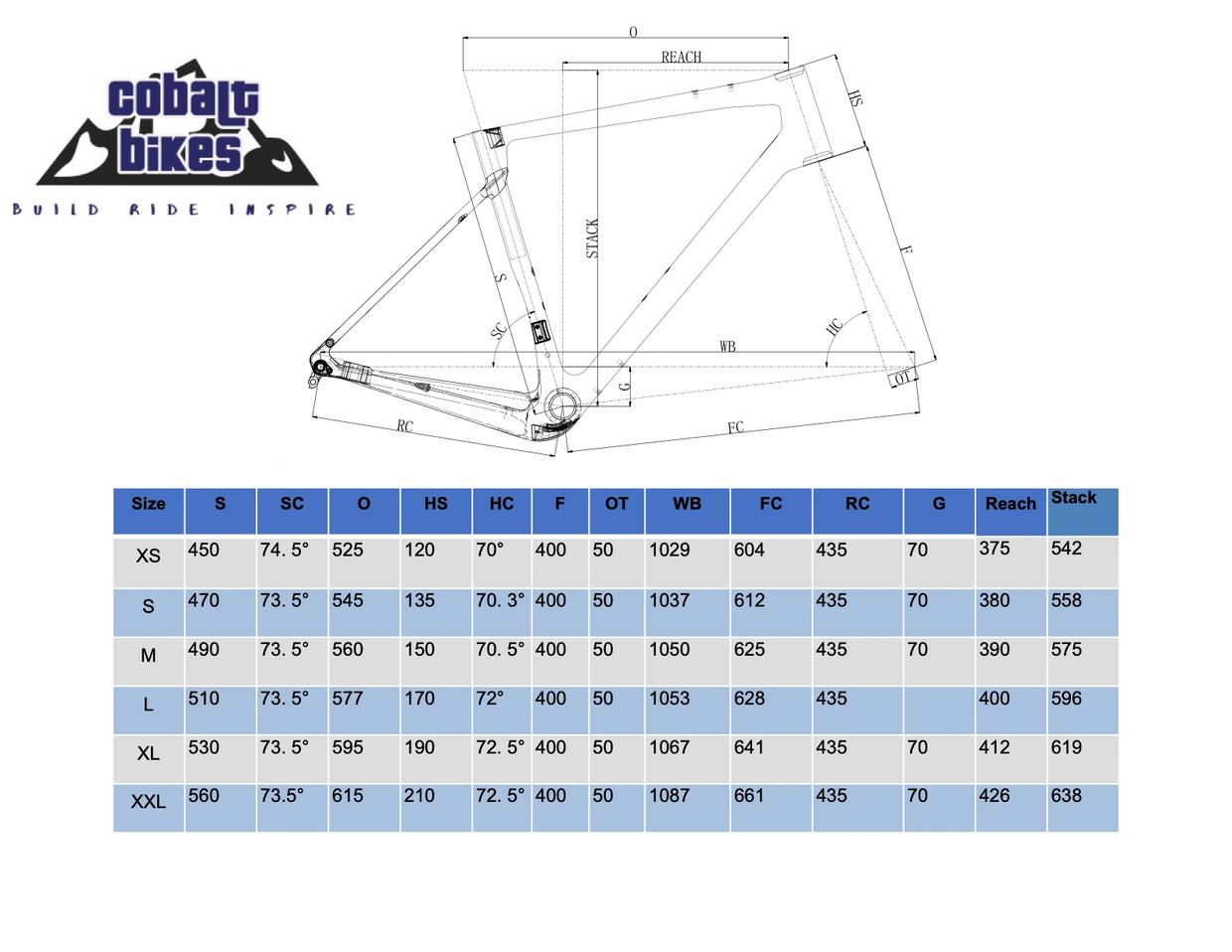

Marauder GEOMETRY 2025
Marauder GEOMETRY Pre-2024
MARAUDER Build Options
Marauder Build Kits

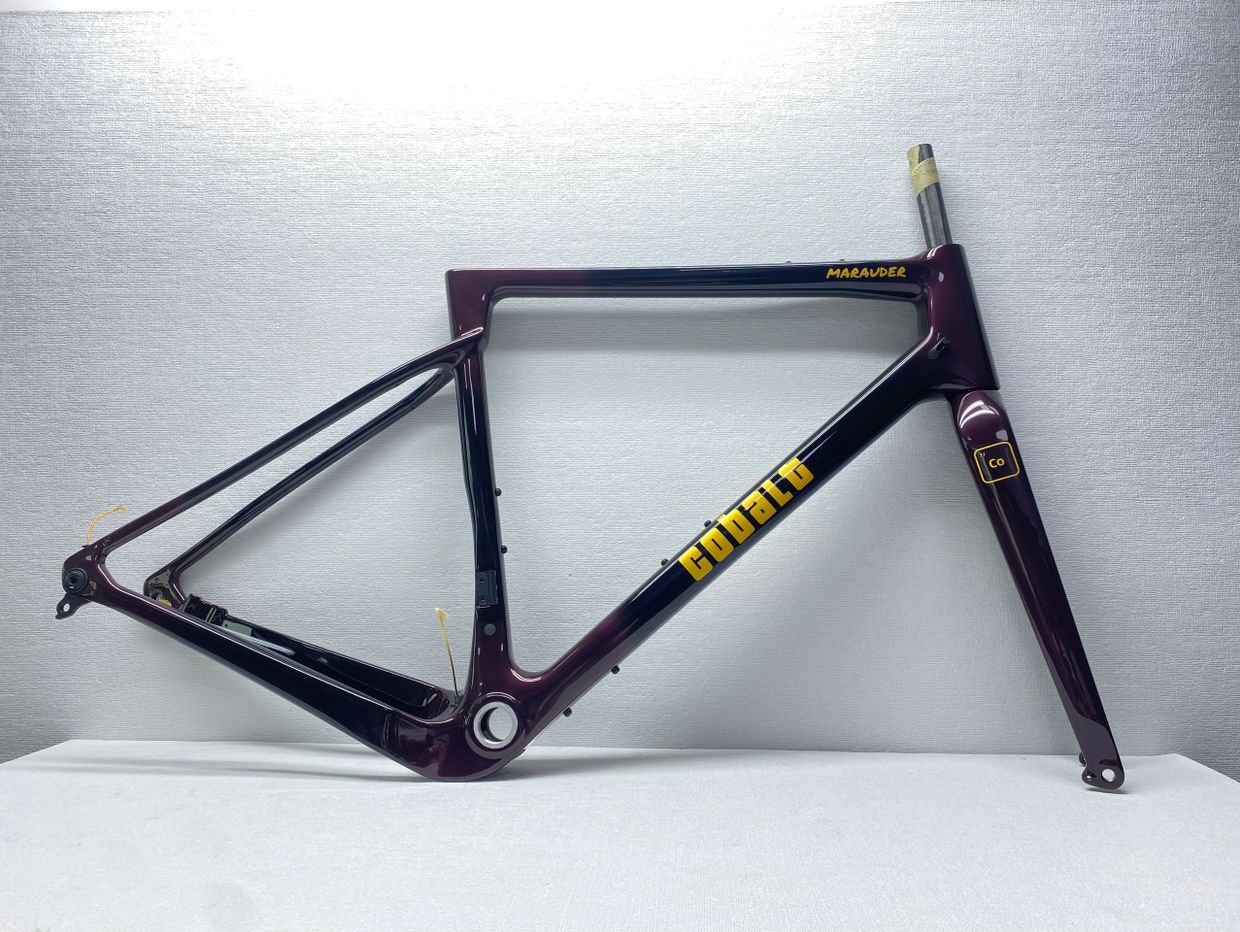

Just want a frame you can build yourself? Check out the Marauder Frame Package. Includes frame, carbon fork, carbon seat post, headset, axles.

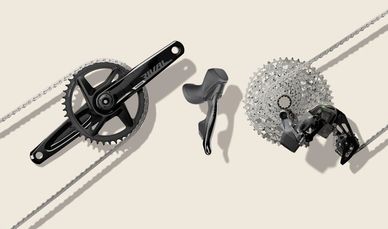

SRAM AXS XPLR
The XPLR collection from SRAM, RockShox, and Zipp celebrates a new era of drop bar riding with three product sets to make gravel yours. Every upgrade works great by itself or all together. So pick a path, or mix and match galore. After all, gravel is what you make it.
Shimano GRX
SRAM Force AXS
Get Shimano's top selling gravel groupset. SHIMANO GRX, with its gravel specific ergonomics, optimized gearing options, rugged reliability, and quiet and stable drivetrain, sets itself apart from the rest of the component world. It isn’t a reworked set of road components. It represents a ground up look at how cyclists want to explore their world. SHIMANO GRX helps you eliminate excuses, instead urging you to try that rough sidetrack or ride that little bit longer. It offers you the option to Explore Beyond
SRAM Force AXS
SRAM Force AXS
SRAM Force eTap AXS™ allows riders to push boundaries without any distractions. This intuitive and high-performance electronic groupset works smarter to offer wider range, and more useful gear progression. Shifting is quiet, secure, and smooth whether on tarmac or gravel with the help of Orbit chain management technology. Option for a 'Mullet build' with Force AXS shifters and Eagle AXS rear derailleur and cassette giving you a wide gear range

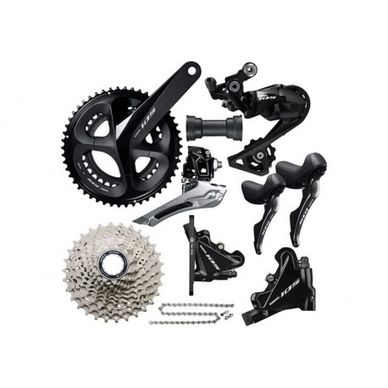

Shimano 105
SHIMANO 105 R7000 Series will empower more riders than ever before to embrace the sport of cycling. It will become the supportive groupset that beginner riders choose to help them train for, and ride in more serious races. By combining trickle down technology with a greater accessibility, SHIMANO 105 will continue to motivate and inspire more riders than ever to go after greater challenges.Top performance at a lower price
Custom Build FAQs
Questions about specific frame builds? See the FAQs page or contact us directly. Frame package and full builds are available
