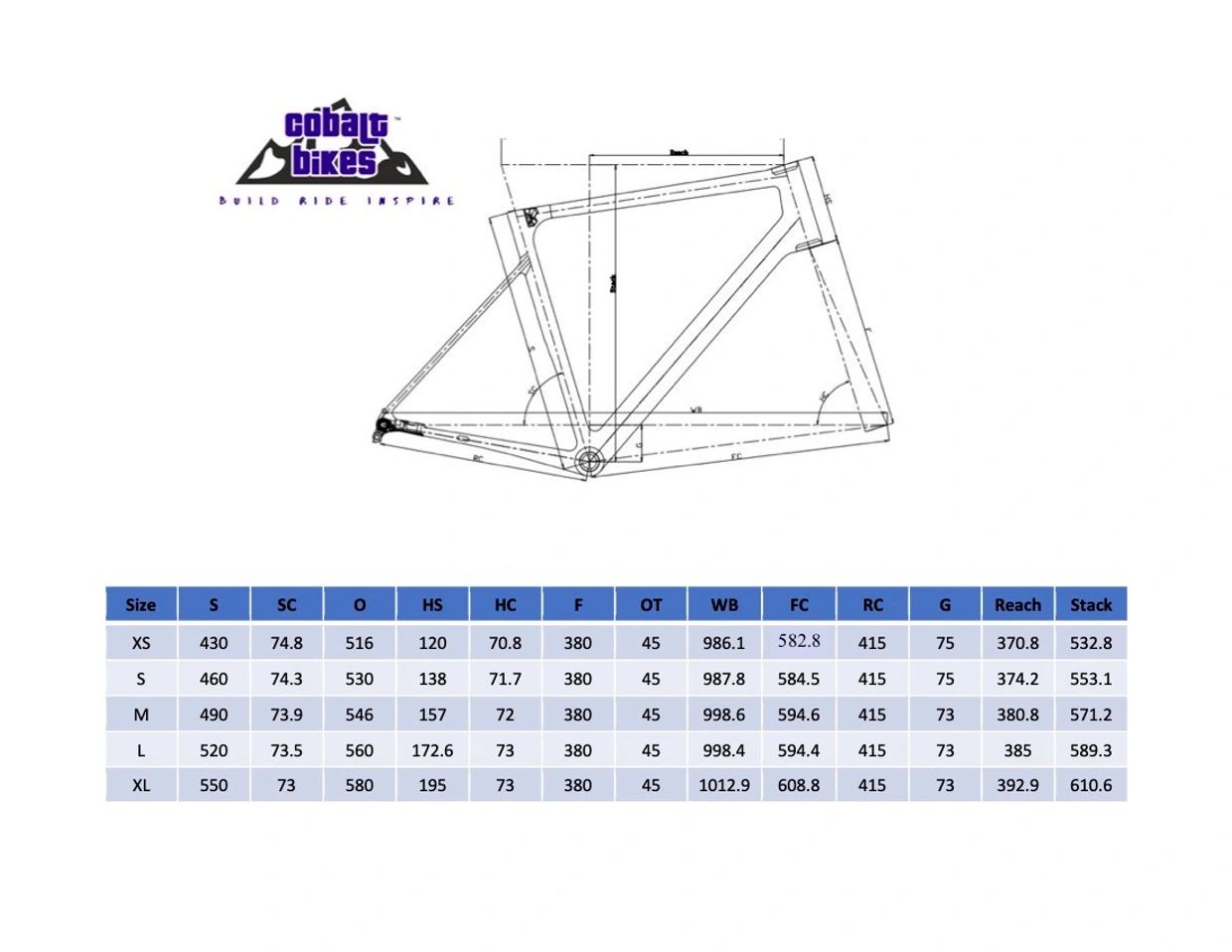

Spitfire Geometry


Designed for speed and agility like its namesake, the Spitfire will not disappoint. The geometry is designed for quick handling, stiff for great climbing and the custom build options give you the opportunity to fine tune your experience.


spitfire Specifications

Material:

100% Toray carbon fiber

Sizes Avail:

48 52 54 56 58 60
Weight :

Frame: 1000g,

Fork: 460g

Tapered Headset size: 1-1/8"  -  1-1/2"

Seat post: 27.2mm diameter

Bottom Bracket: BSA 68 Threaded

Brake: Flat mount

Rotor size:  140/160mm

Axles:

F:12-100mm

R:12-142mm

Max tire size: 700Cx28mm

Max chainring:  52-36T / 46T

Full internal cable housing design

Di2 Compatible


Spitfire Build Options

SRAM Force AXS Etap

Shimano Ultegra Di2 HYDRAULIC

Shimano Ultegra Di2 HYDRAULIC

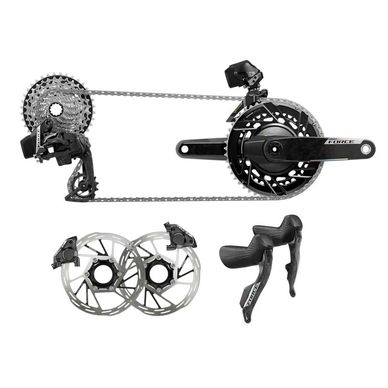

Get the latest top of the line components from SRAM- Wireless electronic shifting and hydraulic disc braking: the best of both worlds. The SRAM Force eTap AXS™ HRD shift-brake system integrates top technology into an efficient package and offers AXS™ for easy personalization.

Shimano Ultegra Di2 HYDRAULIC

Shimano Ultegra Di2 HYDRAULIC

Shimano Ultegra Di2 HYDRAULIC


Get Shimano's top selling electronic shifters and Hydraulic brakes. New ULTEGRA R8070 series is "pro-proven" as it is a direct trickle down from DURA-ACE group set. For a road bike component, the stress-free operation is one of the most important features to lead all day riding comfort with braking and shifting.

SHIMANO ULTEGRA HYDRAULIC

Shimano Ultegra Di2 HYDRAULIC

SHIMANO ULTEGRA HYDRAULIC


The Shimano Ultegra R8020 groupset has improved aesthetics, stiffness and performance over its previous predecessors. Sharing technology that has trickled down from the Dura Ace range this Ultegra 11 speed groupset is a perfect upgrade for your race or training road bike.

Shimano 105 Disc

Custom Build FAQs

SHIMANO ULTEGRA HYDRAULIC


Shimano trickled down the technology and aesthetics of its Dura-ace 9100 series and Ultegra 8100 groupsets to the Shimano 105 R7000 group set for high quality that at a great price.

Custom Build FAQs

Custom Build FAQs

Custom Build FAQs


Questions about specific frame builds? See the FAQs below or contact us directly!
